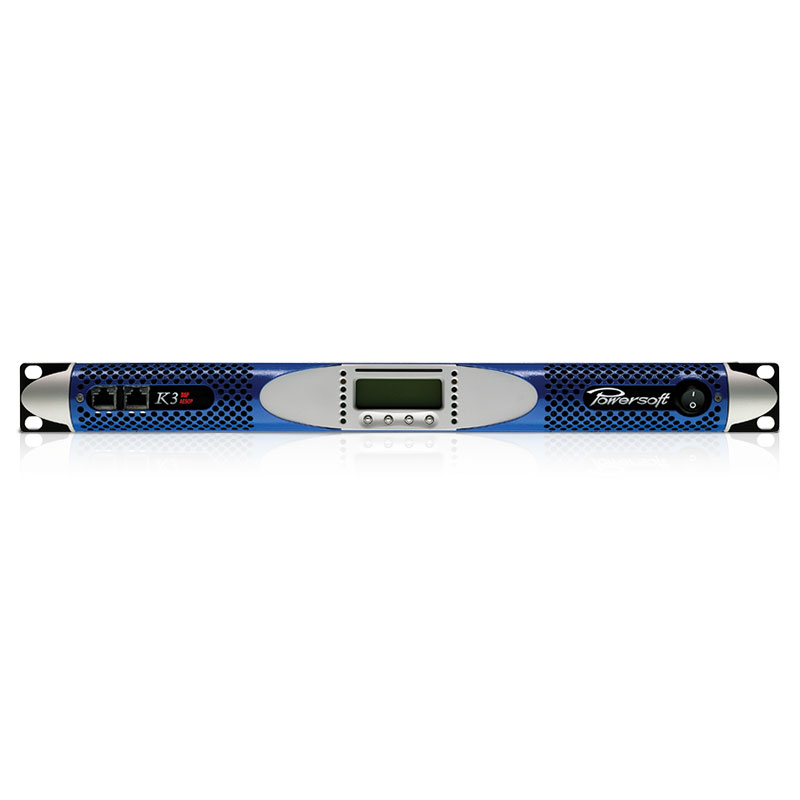

آمپلیفایر پاورسافت k3
powersoft k3
اصالت فیزیکی کالا
ناموجود
متاسفانه این کالا در حال حاضر موجود نیست. میتوانید از طریق لیست بالای صفحه، از محصولات مشابه این کالا دیدن نمایید.
مشخصاتتوضیحاتتعداد اسلات2Uتعداد کانال2 کانالسیستم خنک کننده
-
فیلترهاداردنوع خروجی
2 x XLR - Signal output (link through)
نوع ورودی
2 x XLR - Signal input 1 x Analog/Digital input - Switchable Analog line/AES3 digital input on channel 2
پردازنده داخلی
کلاس پاور امپ-قدرت خروجی 2 اهم درحالت استریو2800Wقدرت خروجی 4 اهم در حالت استریو2600Wقدرت خروجی 8 اهم در حالت استریو1400Wطول380 میلیمترعرض483 میلیمترارتفاع44.45 میلیمتروزن8 کیلوگرم
GENERAL | |||
Output power per channel | |||
Output power per channel | 2800 W @ 2 Ω | 2600 W @ 4 Ω | 1400 W @ 8 Ω |
Bridge mode | 5600 W @ 4 Ω | 5200 W @ 8 Ω | |
Max output voltage / current | |||
Single channel mode | 165 Vpeak / 102 Apeak | ||
Bridge mode | 330 Vpeak | ||
AC MAIN POWER | |||
Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
Operating voltage | 90 V – 264 V | ||
Power consumption / current draw | |||
Idle | 115 V: 64 W – 1.12 A | 230 V: 75 W – 1.3 A | |
1/8 of max output power @ 4 Ω | 115 V: 813 W – 8 A A | 230 V: 813 W – 7.4 A | |
1/4 of max output power @ 4 Ω | 115 V: 1625 W – 14.8 A | 230 V: 1625 W -7.4 A | |
THERMAL | |||
Operating temperature range | 0° – 45° C – 32° – 113° F | ||
Thermal dissipation* | |||
Idle | 115 V: 382 BTU/h – 96.3 kcal/h | 230 V: 382 BTU/h – 96.3 kcal/h | |
1/8 of max output power @ 4 Ω | 115 V: 836 BTU/h – 210.7 kcal/h | 230 V: 836 BTU/h – 210.7 kcal/h | |
1/4 of max output power @ 4 Ω | 115 V: 1390 BTU/h – 350.3 kcal/h | 230 V: 1390 BTU/h – 350.3 kcal/h |
